TE630 fuel filter

SilverBullet

SilverBullet

Husqvarna
AA Class
Looked everywhere and appears the TE630 has no fuel filter. Is this correct? Has anybody installed one and where? I haven't had my tank off yet so haven't seen the fuel supply line setup.

_

RDTCU said:
On the fuel pump, inside the tank, I belive.
Click to expand...

I had already looked on the parts fiche before posting this and didn't see anything. Doesn't even appear to be a screen or sock on the fuel pump either. Husky owners and service manuals don't mention any scheduled maintenance for a fuel filter either.

Only filters I see are in the petcocks for side to side tank balance. I guess Husky didn't want any sediment to get in the cross tube and clog it up.

So looks like the first time my tank comes off I will install a small filter in the gas line from fuel pump to throttle body. Especially on a fuel injected bike no filter is really asking for trouble.

_

SilverBullet said:
I had already looked on the parts fiche before posting this and didn't see anything. Doesn't even appear to be a screen or sock on the fuel pump either. Husky owners and service manuals don't mention any scheduled maintenance for a fuel filter either.

Only filters I see are in the petcocks for side to side tank balance. I guess Husky didn't want any sediment to get in the cross tube and clog it up.

So looks like the first time my tank comes off I will install a small filter in the gas line from fuel pump to throttle body. Especially on a fuel injected bike no filter is really asking for trouble.

_
Click to expand...

I'm sure there's one in there somewhere... Just remember to hose-clamp whatever you install well, it's ~60psi.

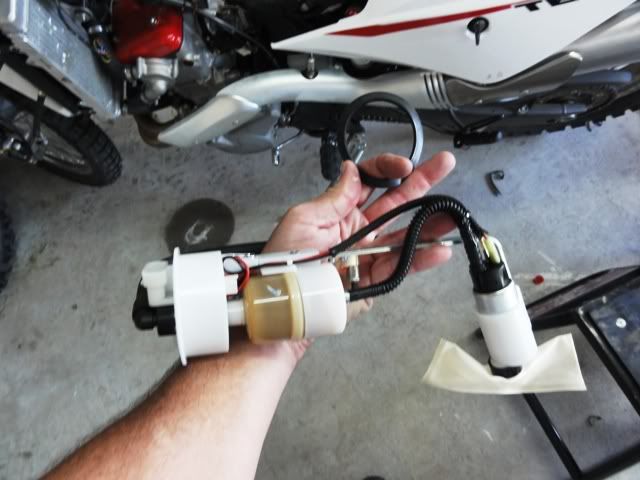

Here's a picture of the fuel pump assembly out of mine. Looks like it's filtered to me.

Rsquared said:
Here's a picture of the fuel pump assembly out of mine. Looks like it's filtered to me.
Click to expand...

Thanks Rsquared I'm glad to see that. But weird thing is Husky doesn't list a replacement filter p/n or specify replacement interval. Do you remmeber if that big inline filter looked to be removable from the pump assembly? I hope we're not forced into buying a complete $400 pump instead of changing out a $10 dirty filter.

_

SilverBullet said:
Thanks Rsquared I'm glad to see that. But weird thing is Husky doesn't list a replacement filter p/n or specify replacement interval. Do you remmeber if that big inline filter looked to be removable from the pump assembly? I hope we're not forced into buying a complete $400 pump instead of changing out a $10 dirty filter.

_
Click to expand...

I don't believe it was designed or intended to be easily changed. As large as the discharge filter is it'll probably run the life of the pump anyway. Most likely, if and when mine fails, I'll probably end up doing a garage fab using one of these pumps and a universal filter.
http://www.ktm-parts.com/FP-HUS.html

I've been trying to find a suitable tank sock but found nothing online. I'm taking mine to Africa and I'd prefer not to have to insist I put a stocking over the pump or filler :)
