HELP!!! Putting flywheel back on. 10 TE310

B

Broccoli2

Husqvarna
B Class
So let me start by saying I am NOT a mechanic, I am finally got all the part to rebuild my 2010 TE310.
The flywheel was already off.

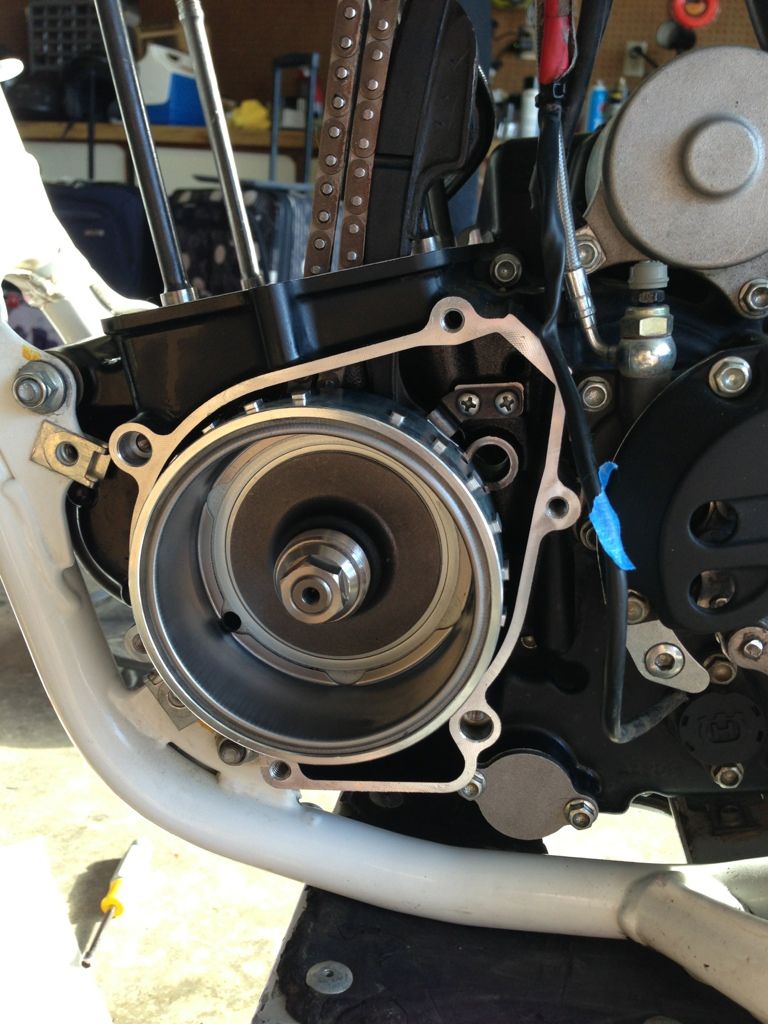

I put a new timing chain on and put the flywheel on and now I just need to tighten the nut per manual specs.
The manual says place aluminum shim in final gear...

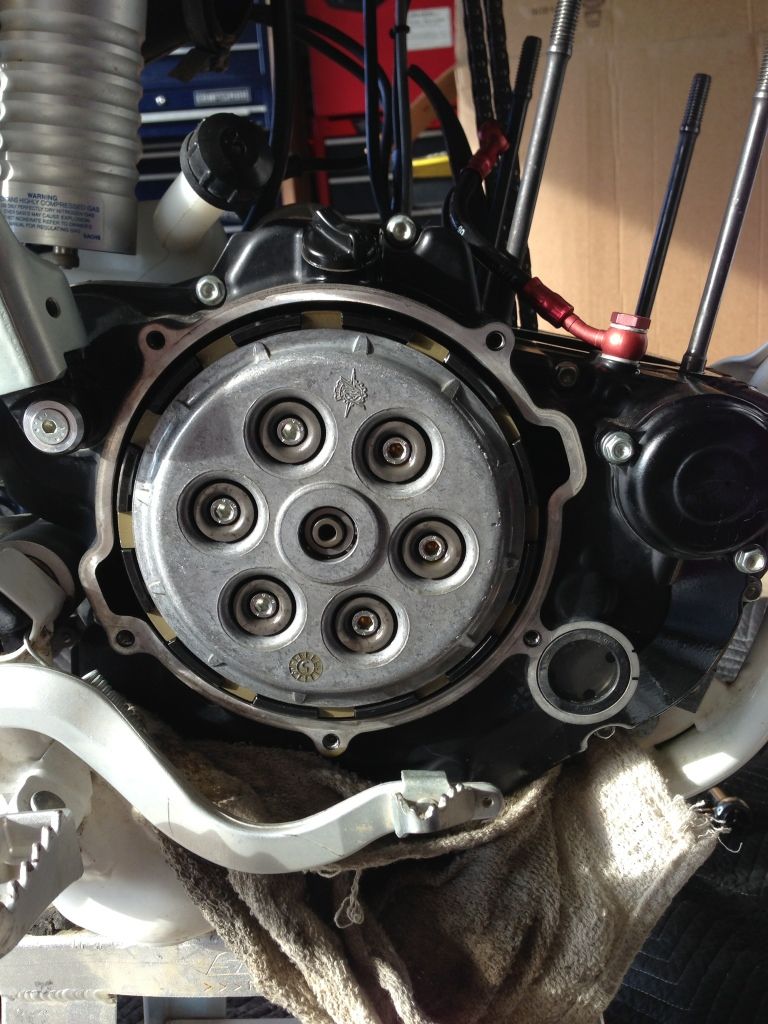

I took the clutch cover off and tried to find someplace to wedge, with no luck.
what is the trick.

HELP!!! today is the day I have to do this

Thanks in advance

I've not stripped a husky down before but I usually wedge a copper coin or a piece of aluminium in the gear on the end ofthe crank shaft then tighten the flywheel.

I've used a piece of muffler hanger rubber on my Harley when needing to lock up a gear mechanism


alright for those playing along at home. THis is what I did

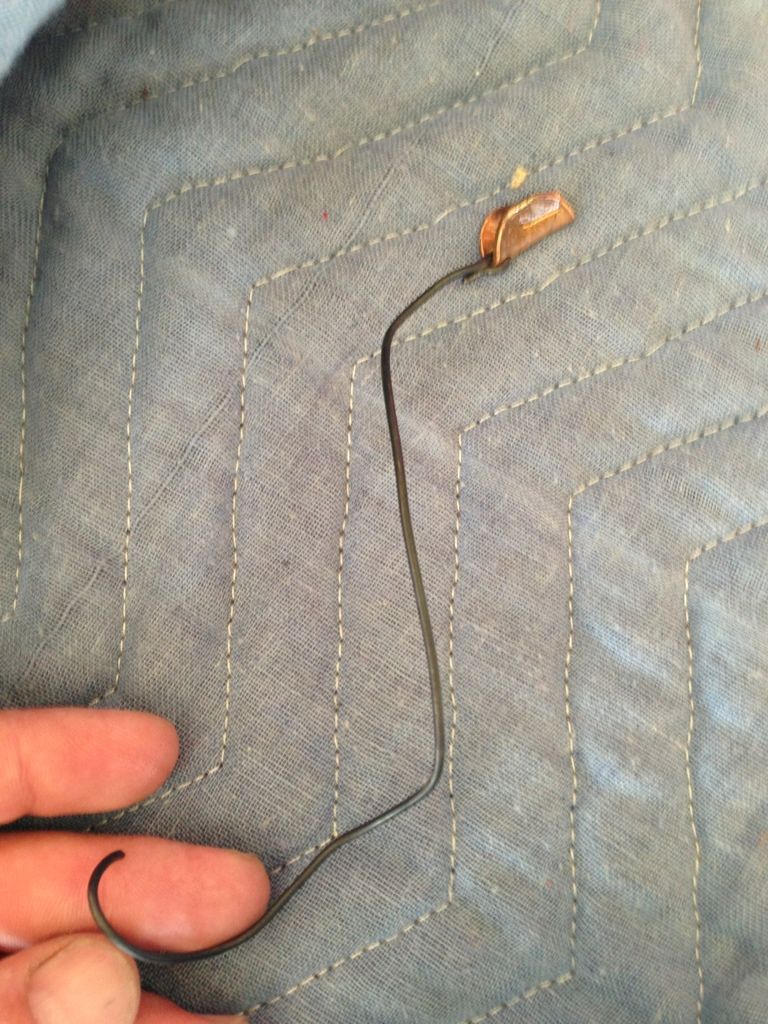

Drilled a hole in a penny, (Not a real penny that would be a crime)

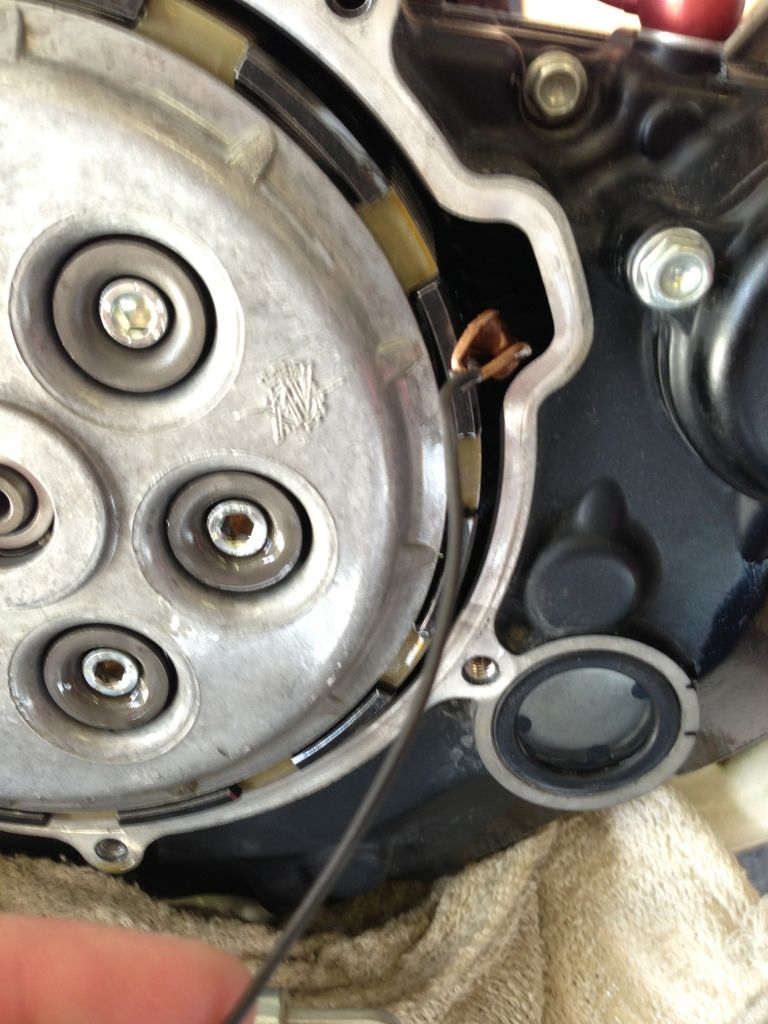

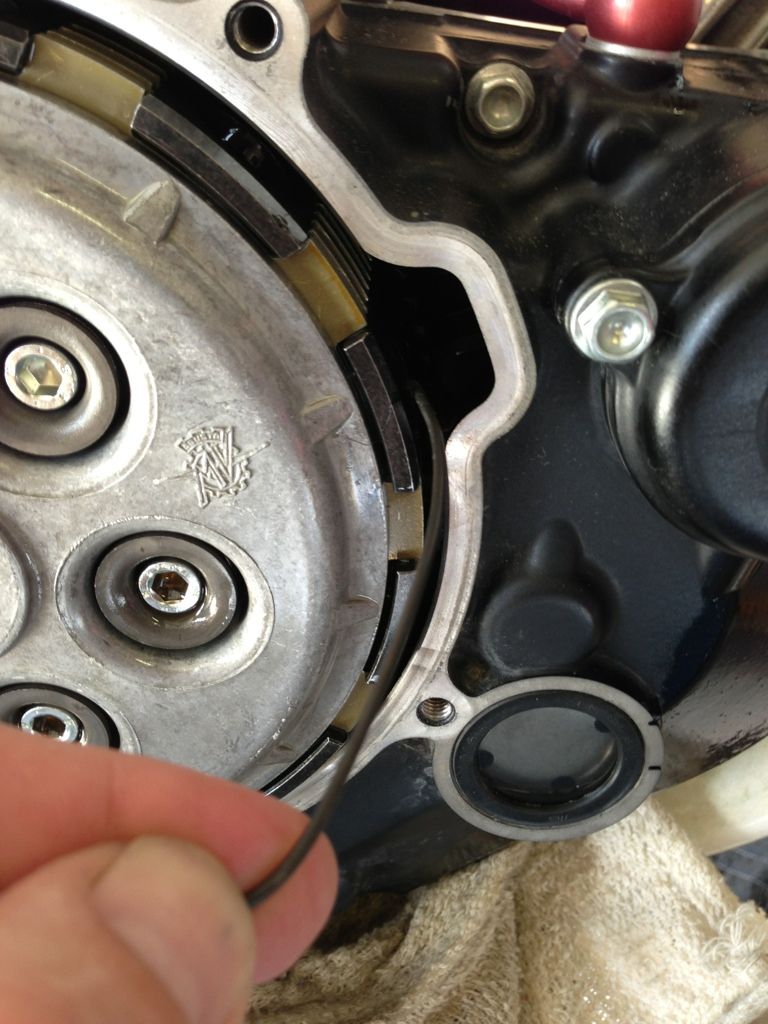

Put a piece of wire thru it and tucked it in behind the case
worked like a charm



Well it worked so good on yer! Really the whole side casing should have come off then jam the primary drive gear, you were luck not to break something doing it that way but it worked so no harm done.

Haha. Freaky. I could see the gears and I gently placed the penny in the gears. I figured if it broke apart or if the penny came off the wire. No big deal I would just take the side cover off.

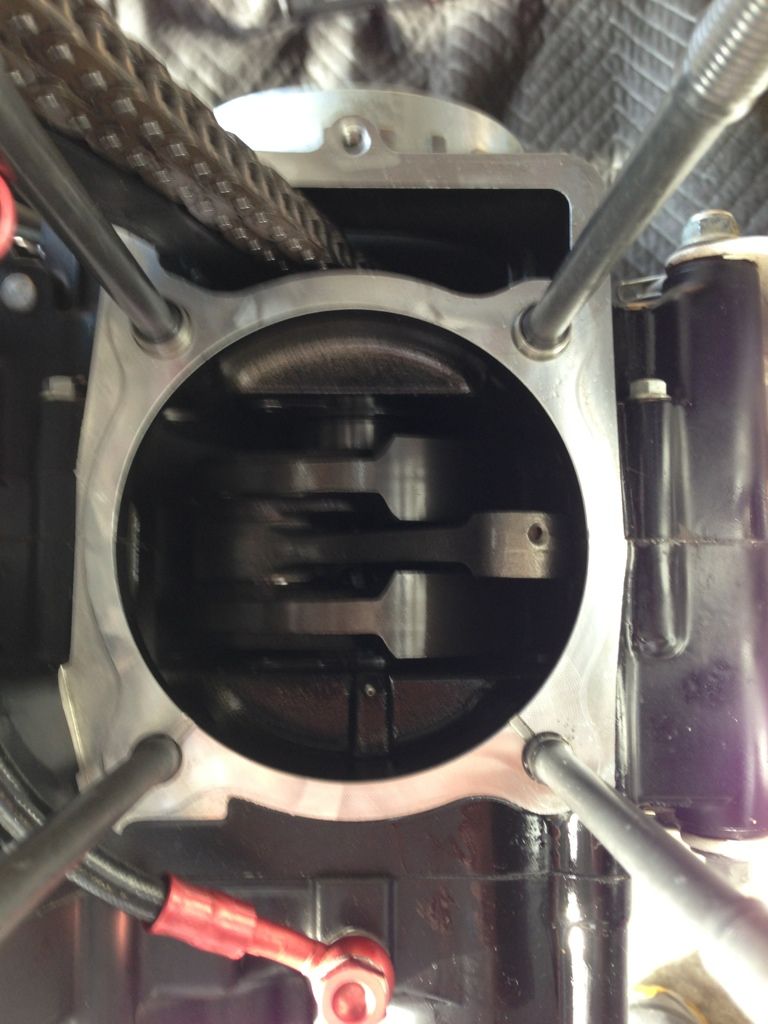

On a side note. I was cooking along, put the piston on then the cylinder. Swapped all the parts from the old head to the new head. Put the gasket on and at that point realized the PO didn't include the "alinement dowls, never made it into the bag of bolts. I tried to rebuild this in my head. Setting aside nuts and bolts as I went. I figured I would be missing something but crap. This is not what I was hopping for. Do you know how hard it is to get these fricken things on a Saturday at 1pm. I was sure I would be riding it today. Now I have to wait until probably next Friday
