TE610 front end - does this look right?

I

Ike Baker

Husqvarna
AA Class
Bought a 2008 TE610 shipped here from MN. The front wheel and handlebars were removed for shipping. Just wanted to make sure I put the wheel back on correctly- seems like there should be additional spacers or something (my 250 is in another state, so I can't compare them).

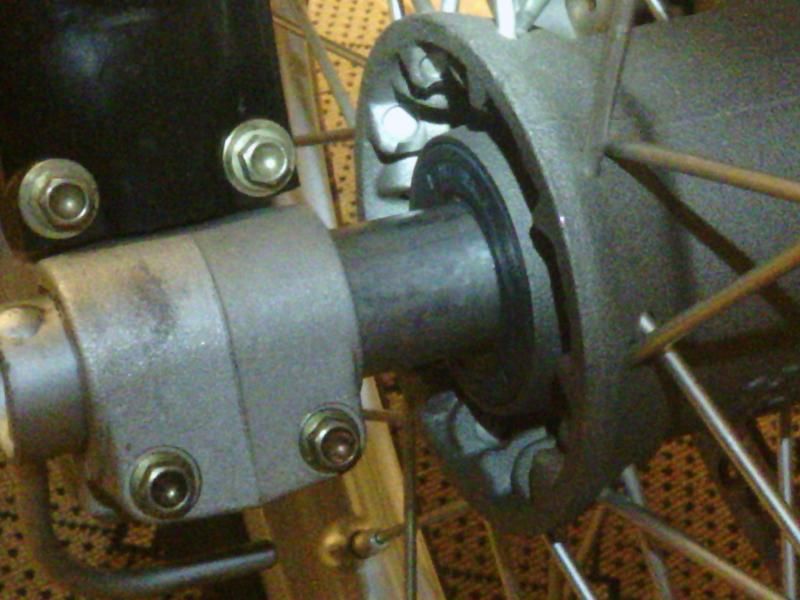

A shot of the right side (taken from in front of the bike):

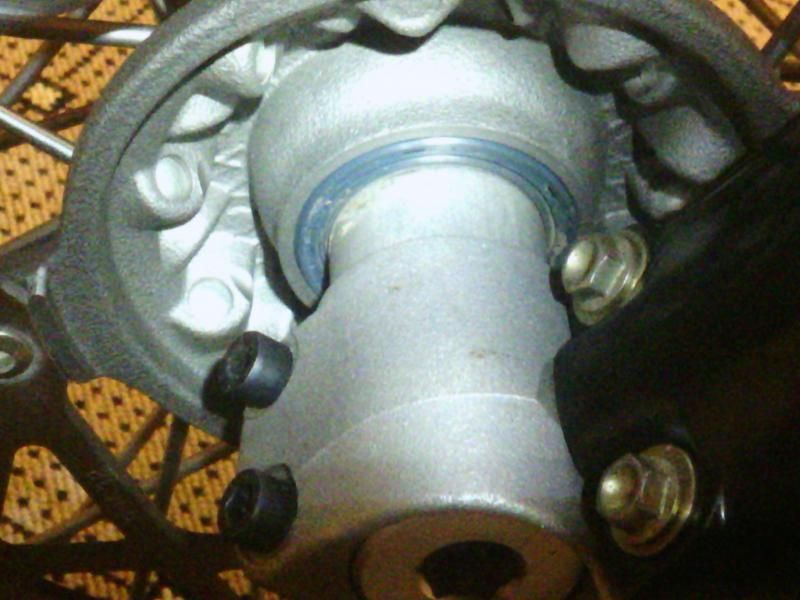

A shot of the left (brake) side:

I don't have any parts left over, and the wheel seems stable - does it look like I'm missing anything?

From my 2008 610SM




The spacers are on there...the black part is just a seal the spacers go inside the seal....the pinch bolts on the fork does not look to be factory. Those are some allen socket cap screws. The pinch bolts should have something with a flange built into the head?

Does it matter? I do not have any idear one.

Thanks, Circus - looks like its put together the same.


huskylove said:
The spacers are on there...the black part is just a seal the spacers go inside the seal....the pinch bolts on the fork does not look to be factory. Those are some allen socket cap screws. The pinch bolts should have something with a flange built into the head?

Does it matter? I do not have any idear one.
Click to expand...


H-love- yep, the two pinch bolts on the left aren't stock. Not sure why not, but I will probably try to find some more like the stock ones. Thanks, guys

Yeah the two allen cap are not OEM - check that the threads have not been tapped bigger. Also the will rust as they do not look plated.
